Brake Drum:42431-35190--Laizhou Yinheng Machinery Co.Ltd

Description
Ref.:	42431-35190

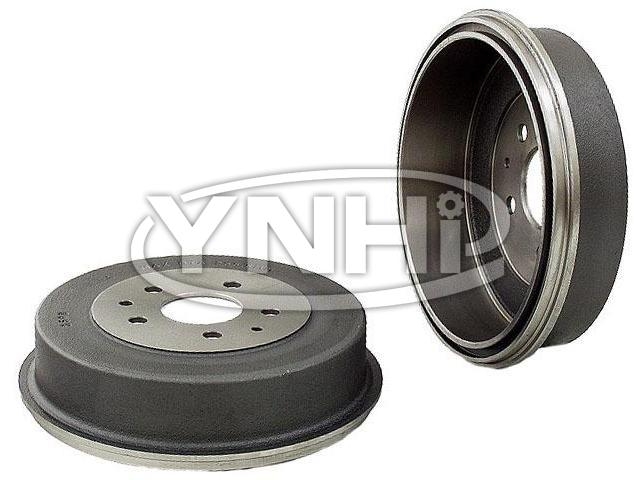

Name:	Brake Drum
Unit:	PCS
Price:
Rear Axle Height : 78 mm Inner Brake Drum Height : 66.3 mm Diameter : 302.6 mm Drum Diameter : 254 mm Center Diameter : 67 mm Pitch Circle Diameter : 114.3 mm Num. of holes : 5

Model	Engine			Type	CYL	year
TOYOTA HIACE I Box (H10)					7/77 - 3/83
HIACE I Box (H10) 2.0 (RH25-32)	18R	1968	88	Box	4	7/77 - 3/83
TOYOTA HIACE I Wagon (H10)					1/79 - 2/84
HIACE I Wagon (H10) 1.6	12R	1587	67	Bus	4	1/79 - 2/84
TOYOTA HIACE II Box (H20)					3/83 - 1/89
HIACE II Box (H20) 1.8	2Y	1812	79	Box	4	3/83 - 1/89
HIACE II Box (H20) 2.2 D	2Y	2173	67	Box	4	3/83 - 1/89
TOYOTA HIACE II Wagon (H20)					8/84 - 8/89
HIACE II Wagon (H20) 2.0 4x4	3Y	1998	88	Bus	4	8/87 - 7/89
HIACE II Wagon (H20) 1.8 (H5G)	L	1812	79	Bus	4	3/83 - 1/89
HIACE II Wagon (H20) 2.0 (H5G)	3Y	1998	88	Bus	4	1/85 - 8/89
HIACE II Wagon (H20) 2.2 D (H5G)	L	2173	67	Bus	4	3/83 - 1/89
HIACE II Wagon (H20) 2.4 D (H5G)	2L	2446	75	Bus	4	8/84 - 8/89
TOYOTA HIACE III Box (H50)					2/90 - 8/95
HIACE III Box (H50) 2.0	1RZ	1998	101	Box	4	2/90 - 8/95
HIACE III Box (H50) 2.4	2RZ-E	2438	120	Box	4	8/89 - 8/95
HIACE III Box (H50) 2.4 Diesel	2L	2446	75	Box	4	2/90 - 8/95
TOYOTA HIACE III Wagon (H50)					8/89 - 8/95
HIACE III Wagon (H50) 2.0 (RZH102)	1RZ	1998	101	Bus	4	8/89 - 8/95
HIACE III Wagon (H50) 2.4 (RZH103)	2L	2438	120	Bus	4	8/89 - 8/95
HIACE III Wagon (H50) 2.4 D (LH102)	2L	2446	75	Bus	4	8/89 - 8/95
TOYOTA HILUX II Pickup (_N_)					1/92 - /
HILUX II Pickup (_N_) 1.8 (YN85_, YN90_)	2Y	1812	83	Pickup	4	8/88 - 7/94
HILUX II Pickup (_N_) 2.0	3Y	1998	88	Pickup	4	1/84 - 2/86
HILUX II Pickup (_N_) 2.2 4WD (YN106_, YN110_)	4Y	2237	94	Pickup	4	1/87 - 2/89
HILUX II Pickup (_N_) 2.4 D	2L	2446	83	Pickup	4	8/88 - /
HILUX II Pickup (_N_) 2.4 D	2L	2446	80	Pickup	4	1/92 - /
VOLKSWAGEN TARO					9/91 - 7/94
TARO 1.8	2Y	1812	83	Pickup	4	4/89 - 9/94
TARO 2.2	4Y	2237	94	Pickup	4	6/89 - 7/94
TARO 2.4 D	2L	2446	83	Pickup	4	6/89 - 3/97
TARO 2.4 D	2L	2446	80	Pickup	4	9/91 - 7/94
