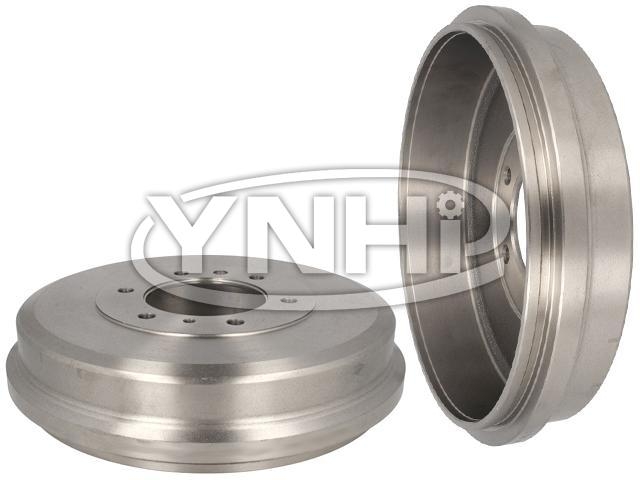

Brake Drum:8-98061-813-0--Laizhou Yinheng Machinery Co.Ltd

Description
Ref.:	8-98061-813-0
Name:	Brake Drum
Unit:	PCS
Price:
Rear Axle Height : 80.4 mm Inner Brake Drum Height : 65.6 mm Diameter : 337 mm Drum Diameter : 295.0 mm Center Diameter : 101 mm Pitch Circle Diameter : 139.7 mm Number Of Holes : 6

Model	Engine			Type	CYL	year
ISUZU D-MAX Platform/Chassis					6/12 - /
D-MAX Platform/Chassis 2.5 D	4JA1-L	2499	79	Platform/Chassis	4	6/12 - /
D-MAX Platform/Chassis 2.5 D	4JK1-TC	2499	116	Platform/Chassis	4	6/12 - /
D-MAX Platform/Chassis 2.5 Ddi	4JK-1E5-TC	2499	163	Platform/Chassis	4	6/12 - /
D-MAX Platform/Chassis 2.5 Ddi 4WD	4JK-1E5-TC	2499	163	Platform/Chassis	4	6/12 - /
ISUZU D-MAX					6/12 - /
D-MAX 2.5 Ddi 4WD		2499	163	Pickup	4	6/12 - /
D-MAX 2.5 Ddi		2499	163	Pickup	4	6/12 - /
D-MAX (TFR, TFS) 2.5 D	4JK1-TCX	2499	136	Pickup	4	6/12 - /
D-MAX (TFR, TFS) 2.5 D	4JK1-TC	2499	109	Pickup	4	6/12 - /
D-MAX (TFR, TFS) 2.5 D	4JK1-TC	2499	116	Pickup	4	6/12 - /
D-MAX (TFR, TFS) 2.5 D	4JA1-L	2499	79	Pickup	4	6/12 - /
D-MAX (TFR, TFS) 2.5 D 4x4	4JK1-TC	2499	109	Pickup	4	6/12 - /
D-MAX (TFR, TFS) 2.5 D 4x4	4JK1-TCX	2499	136	Pickup	4	6/12 - /
ISUZU MU-X Closed Off-Road Vehicle					1/13 - /
MU-X Closed Off-Road Vehicle 2.5 D	4JK1-TCX	2499	136	Closed Off-Road Vehicle	4	1/13 - /
MU-X Closed Off-Road Vehicle 2.5 D 4x4	4JK1-TC	2499	136	Closed Off-Road Vehicle	4	1/13 - /
MU-X Closed Off-Road Vehicle 3.0 TD	4JJ1-TC	2999	177	Closed Off-Road Vehicle	4	1/13 - /
MU-X Closed Off-Road Vehicle 3.0 TD 4x4	4JJ1-TC	2999	177	Closed Off-Road Vehicle	4	1/13 - /
